Three Phase Timer Energy Meter, 3x240 V,
Frequency : 50 Hz,  Wall Mount Type, Digital LCD
Parameters : Voltage, Current, PF, Power, Frequency, Energy, Time, Date

Single Phase Panel Meter Cabinet
Size : 72 x 72 mm
Inbuilt CT Provision, Compact, Panel Mount Type

Material : Polycarbonate
Wall Mount Type
Useful for Single Phase and Three Phase
Can fix 96x96 energy meter / panel meter
Power Wire, RS 485 Connections port available

THREE PHASE DIN RAIL METER CASING, POLYCARBONATE MATERIAL,
SPACE AVAILABLE FOR DIN RAIL METER AND 4 POLE MCB CASING
OPEN-CLOSE TYPE CASING

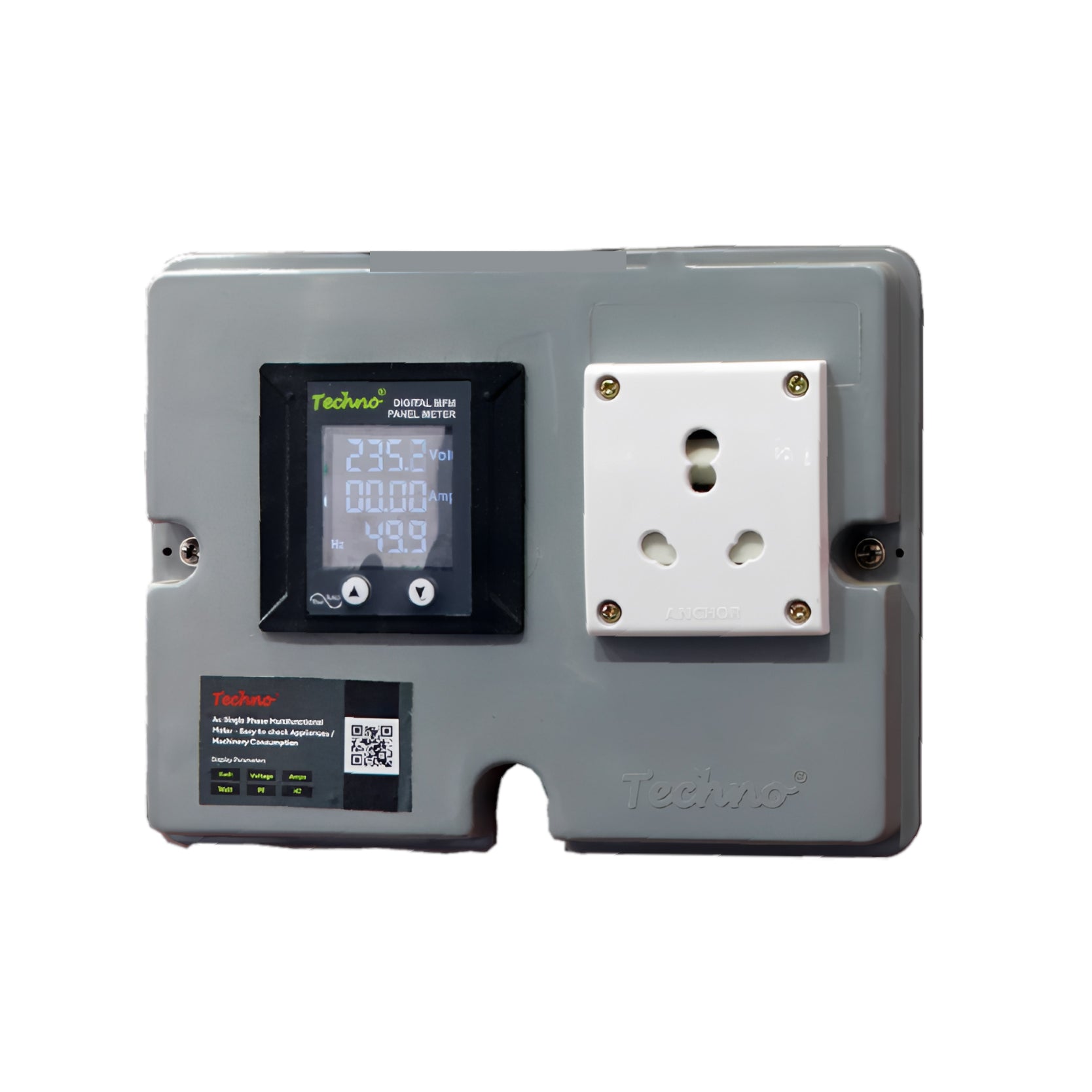

SINGLE PHASE MULTIFUNCTIONAL PANEL METER KIT WITH POWER SOCKET

- Single Phase Multifunctional Panel Meter (TMCB072MFM) that measures Voltage, Ampere, kW, Hz, PF.

- Inside Meter Size : 72 x 72 mm, Ampere Rating : Upto 40 A, The size of this panel is 72x72mm, Inbuilt Current Transformer, Display : Bright Multifunctional LCD

- Light Weight, Dust Proof Body, Elegant Poly-Carbonate Casing & Rugged Construction provides High Resistance to UV.

- Warranty: 1 Year by TECHNO Long working life upto 5 years."

• THREE PHASE TWO WIRE SMART METER  - TMCB 013 (SMART) - 5-60 A
• With RS 485 Communication Port
• (MODBUS) 232 PORT
• LoRA WAN Enable
• Dual Source
• Direct or CT-Operated
• ON/OFF Relay
• Import / Export
• Bi-Directional (Solar Net)
• Current Range : 5 - 60 A Three Phase 4 Wire Accuracy : Class 1.0 Voltage : 3x240 V AC, Frequency : 50 Hz
• Three Operating Modes :
  • Post Payment Mode
  • Pre-Payment Mode
  • Net Metering Mode
• M to M Sim based Communication
• Measures both import and export separately and has the net value available for both kWh and KVArh billing

• SINGLE PHASE TWO WIRE SMART METER - TMCB 012 (SMART) - 5-60 A
• Bi-Directional With RS 485 MODBUS/232 PORT
• DUAL SOURCE
• LORA ENABLE
• DIRECT OR CT-OPERATED
• ON/OFF RELAY
• IMPORT / EXPORT FOR SOLAR SYSTEM
• Accuracy : Class 1
• Single Phase Tow Wire Smart Meter (5-60 A)
• Voltage : 240 V, Frequency : 50 Hz, Burden : < 10 VA, Power Consumption : 5 Watt (as Per Std)
• Three Operating Modes :
  • Post Payment Mode
  • Pre-Payment Mode
  • Net Metering Mode
• M to M Sim based Communication
• Measures both import and export separately and has the net value available for both kWh and KVArh billing
