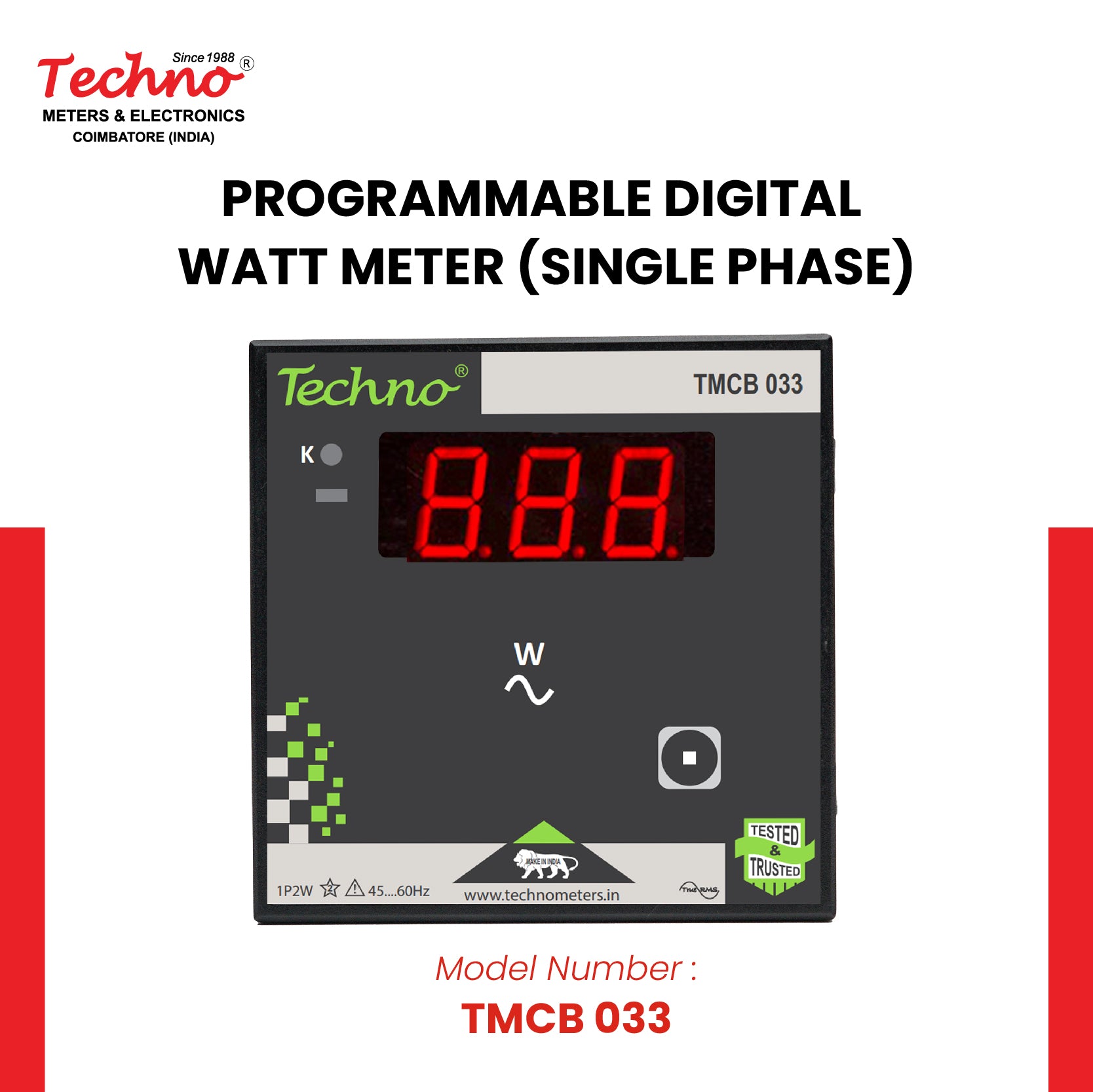

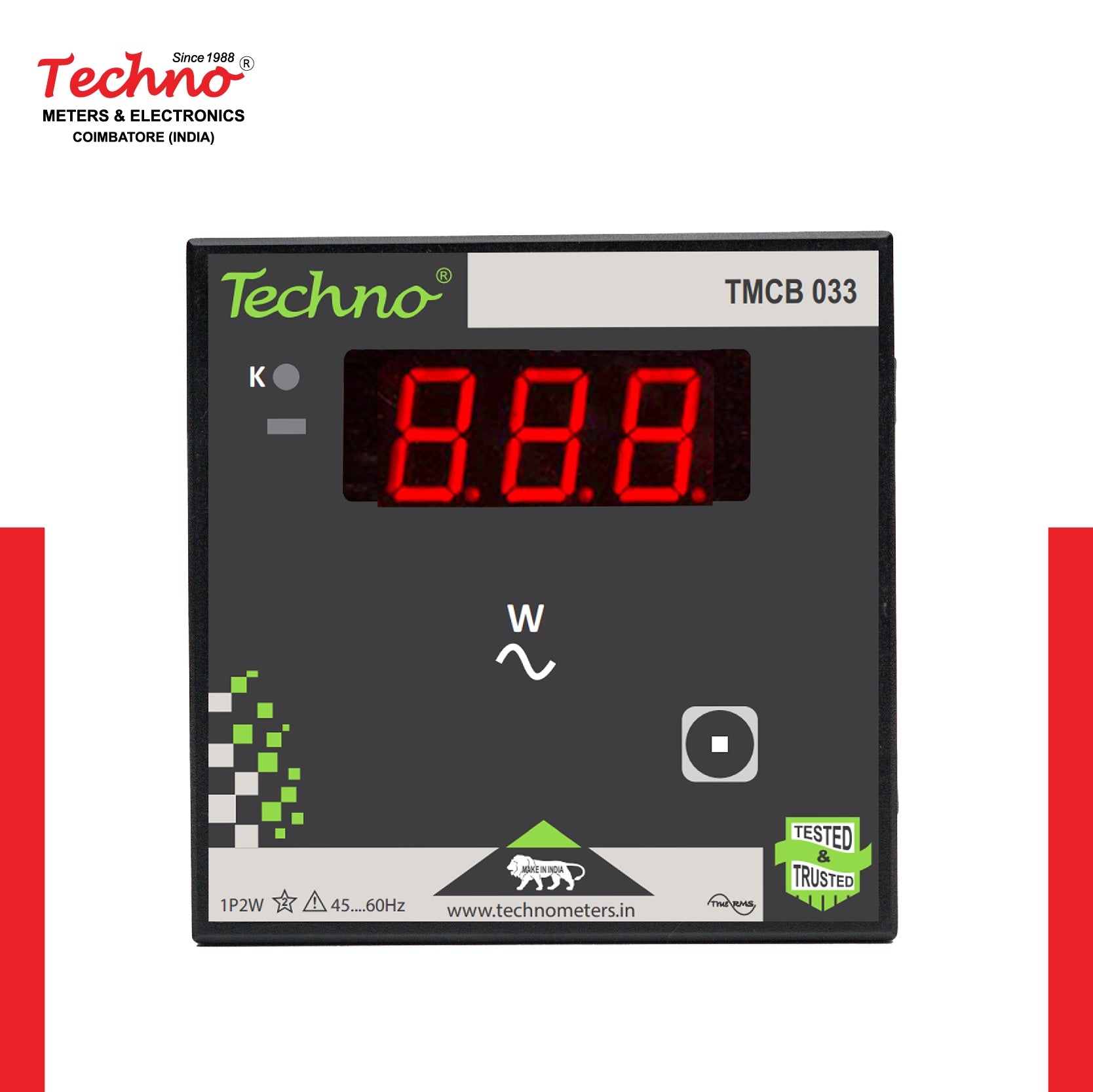

SINGLE PHASE PROGRAMMABLE DIGITAL WATT METER

SKU: TMCB033_SP
Rs. 1,300.00 Rs. 2,275.00
-43%
Type: 5 A (SINGLE PHASE)
📄Download User Manual
In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
SINGLE PHASE PROGRAMMABLE DIGITAL WATT METER
Rs. 1,300.00 Rs. 2,275.00
Rs. 1,300.00 Rs. 2,275.00
Choose option
Type: 5 A (SINGLE PHASE)
  • 5 A (SINGLE PHASE)

Description

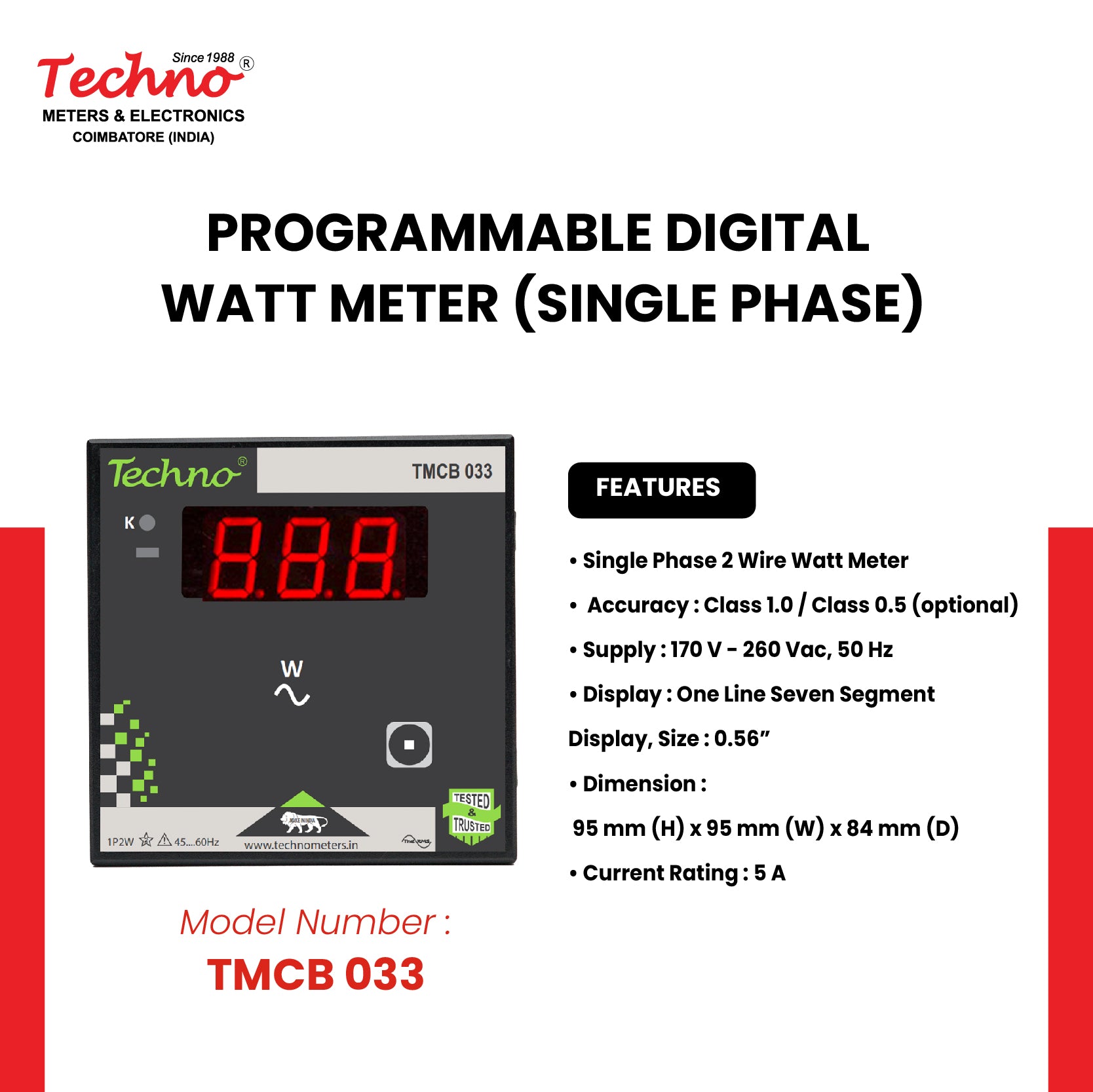

  • Specifications:
    • Ampere Rating : 5 A, Class: 1.0/ Class 0.5(Optional), Single Phase two wire
    • Supply: 170V – 260Vac, 50Hz
    • Display: One Line Seven Segment display, Size 0.56”
    • Display Parameters: Wattage
    • CT Selection: Programmable through Keypad, Dimension: 95mm(H) x 95mm(W) x 84mm(D)
  • Features:
    • True RMS Measurement
    • One Line 4 digits Display
    • CT Ratio Programming (Range: 5/5 to 9000/5)
    • Auto decimal shifting for current (from 0.01 to 9999)
    • Bright Seven segment LED display for better readability
  • Light Weight, Dust Proof Body, Elegant Poly-Carbonate Casing & Rugged Construction provides High Resistance to UV.
  • Warranty: 1 Year by TECHNO Long working life upto 5 years.

Key Features

TP, Panel Type, Power Factor Meter
